RepMold: The Future of Fast and Flexible Mold Making
Manufacturing is changing quickly. Companies want to make products faster, cheaper, and with better quality. They also want to reduce waste and energy use. Traditional mold-making methods take too much time and cost a lot of money.
RepMold is a new method that helps solve these problems. It combines digital design, modern materials, and fast production. The result is molds that are accurate, affordable, and ready in days instead of weeks. This article explains what RepMold is, how it works, its benefits, uses, challenges, and future trends Ceıvır
What Is RepMold?
RepMold is a modern mold-making method that uses digital design, 3D printing, and fast-curing materials like epoxy to create molds quickly and at a lower cost than traditional metal tooling. Instead of machining steel or aluminum, a master model is made from CAD data, and liquid resin is poured around it to form a precise, reusable mold. This process allows manufacturers to produce accurate prototypes, small-batch parts, and custom products in just a few days, making RepMold ideal for industries that need speed, flexibility, and affordability in manufacturing.
Background and Context
Traditional Mold-Making
For many years, molds for plastic, metal, or rubber parts were made by machining steel or aluminum blocks. This process has several steps:
-
Design the mold and part in CAD software.
-
Cut and shape the metal block using CNC machines.
-
Polish, test, and adjust the mold.
-
Begin production.
This method is precise but slow and expensive. A single mold can cost thousands of dollars and take months to finish.
Problems with Traditional Methods
| Problem | Description |
|---|---|
| Long lead times | Slow production delays projects. |
| High cost | Expensive materials and machining. |
| Hard to change designs | A small change often requires a new mold. |
| High waste | Large amount of material removed during machining. |
| Requires experts | Needs skilled toolmakers and engineers. |
Why a New Approach Is Needed
Modern manufacturing demands:
-
Faster product development.
-
More customization for customers.
-
Short production runs.
-
Lower environmental impact.
-
Better use of digital tools like CAD and 3D printing.
RepMold meets these needs by using replication and digital workflows to make molds quickly and efficiently.

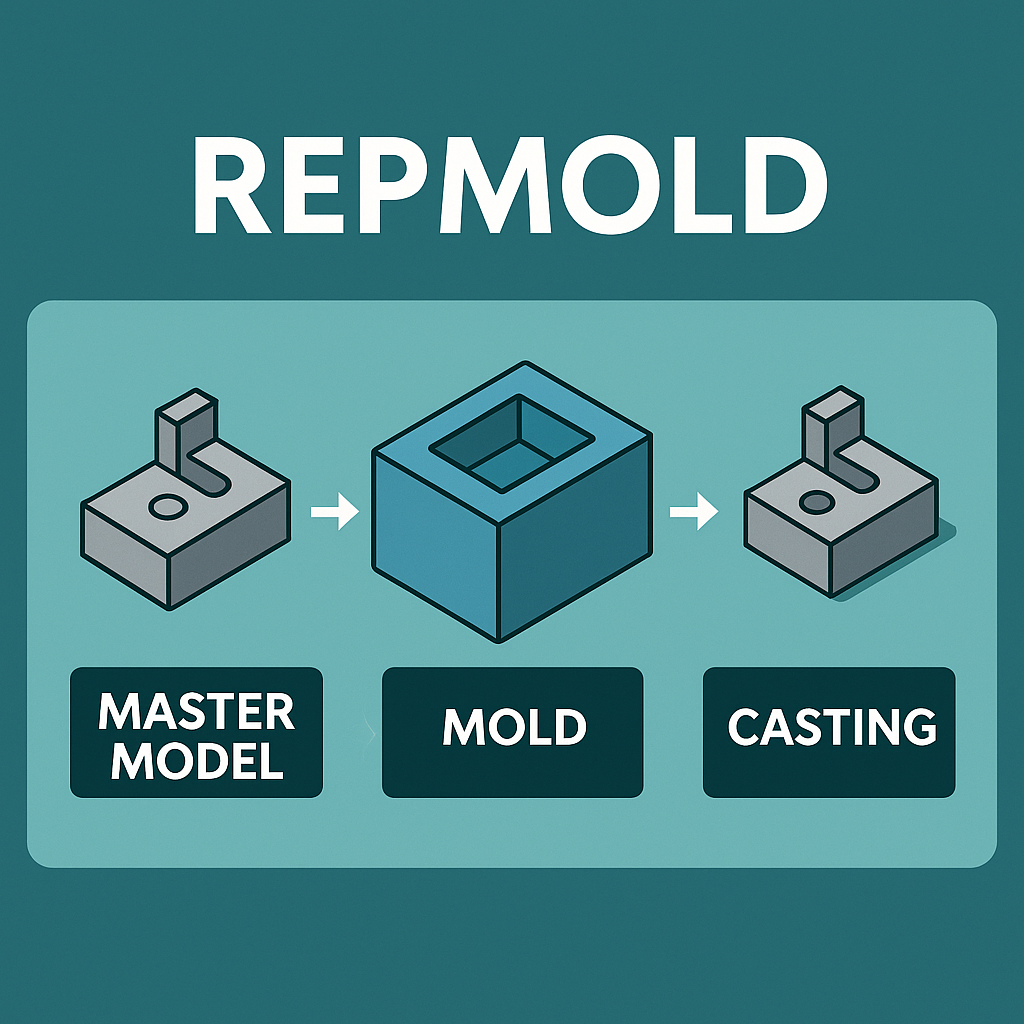

How RepMold Works
The RepMold process includes several clear steps:
| Step | Description |
|---|---|
| 1. Design | Create the product model in CAD. Simulate stress and fit. |
| 2. Master pattern | Build a solid master using 3D printing or CNC. |
| 3. Mold creation | Pour epoxy or silicone around the master to form the mold. |
| 4. Curing and finishing | Let the mold harden, then remove the master. |
| 5. Production | Use the mold to create parts through casting or injection. |
| 6. Iteration | Update CAD and make a new mold if design changes. |
Why It Is Faster
Because the mold is made by casting instead of machining, it takes days instead of weeks. A design change can be completed and tested in one or two days.
Main Benefits of RepMold
Faster Lead Time
RepMold cuts production time by up to 80%.
-
Steel mold: 6–12 weeks.
-
RepMold: 2–10 days.
This helps companies test products sooner and reach the market faster.
Lower Cost
| Cost Area | Steel Mold | RepMold |
|---|---|---|
| Material | Steel/Aluminum | Epoxy/Polymer |
| Setup | Complex | Simple |
| Upfront Cost | High | 50–90% lower |
| Replacement | Costly | Easy and cheap |
This lower cost means less financial risk for startups and small runs.
Flexibility and Easy Updates
Design changes can be made quickly without high expenses. Teams can test multiple designs before finalizing a product.
Good Accuracy and Quality
Modern RepMold techniques produce parts with good surface finish and dimensional accuracy within ±0.05 mm. This is suitable for most production needs.
Better Sustainability
RepMold reduces waste because it uses less material and energy. It also makes it easier to produce only what is needed, which avoids overproduction.
Local and On-Demand Production
Companies can make molds and parts locally, reducing shipping time and cost. It also supports small manufacturing hubs that produce parts when needed.
Applications of RepMold
RepMold is useful in many industries.
| Industry | Common Uses | Key Benefit |
|---|---|---|
| Automotive | Custom interiors, test parts | Quick iteration |
| Aerospace | Composite molds | Lightweight tooling |
| Medical | Custom implants, devices | Personalization |
| Consumer goods | Limited editions | Fast production |
| Electronics | Plastic housings | Design flexibility |
| Education | Research and projects | Affordable prototyping |
Example
A company designing a smartwatch needs only 100 prototype casings.
-
A steel mold would cost $30,000 and take 8 weeks.
-
RepMold costs about $2,500 and takes less than a week.
They test the design, make small changes, and produce the next batch quickly.
Challenges and Limitations
Even with many benefits, RepMold has limits.
| Challenge | Explanation | Solution |
|---|---|---|
| Shorter mold life | Epoxy molds wear faster than steel | Use inserts or reinforced resins |
| Material limits | Not ideal for very hot materials | Choose compatible resins |
| Size and scale | Best for small to medium runs | Combine with steel for large runs |
| Accuracy over time | May change with heat or use | Regular calibration |
| Skilled use | Needs training for quality control | Standardized process manuals |
RepMold is ideal for small batches but less suitable for mass production of millions of parts.
Environmental Benefits
RepMold supports green manufacturing goals.
-
Uses less metal and energy.
-
Creates less waste.
-
Enables local production.
-
Reduces storage and transport needs.
-
Supports recycling of molds and materials.
By making molds faster and closer to where they are used, RepMold lowers the carbon footprint of production.
Future Trends
Smart Molds
New RepMold systems can include sensors that measure temperature, pressure, and wear. This helps predict when maintenance is needed.
Artificial Intelligence and Digital Twins
Digital twins are computer models that simulate how molds behave over time. When combined with AI, they can predict tool failure and improve process control.
Advanced Materials
Stronger epoxy resins and fiber-reinforced composites are extending the life and performance of RepMold tools.
Hybrid Manufacturing
Manufacturers may use RepMold for short runs and switch to steel tooling for high-volume production. Both can share the same CAD data for seamless scaling.
Local Production Networks
Small local factories can use RepMold to make custom parts on demand. This supports Industry 4.0 goals such as flexibility and digital integration.
Impact on Industry
| Factor | Before RepMold | After RepMold |
|---|---|---|
| Design-to-production time | 3–6 months | 1–4 weeks |
| Prototyping cost | High | Low |
| Risk of design error | High | Low |
| Customization | Limited | Easy |
| Environmental impact | Heavy | Reduced |
Rep Mold gives both large and small manufacturers new freedom. It reduces barriers to entry and increases speed, which is critical in competitive markets.
Key Takeaways
-
Rep Mold combines digital design, epoxy molding, and automation to make molds quickly.
-
It saves up to 90% in cost and cuts lead times by up to 80%.
-
It supports small-batch, sustainable, and flexible manufacturing.
-
It complements, not replaces, traditional steel tooling.
-
It is ideal for prototypes, pre-production, and small production runs.
FAQs
What is Rep Mold?
Rep Mold is a fast and low-cost way to make molds by copying a master model. It uses materials like epoxy or polymer instead of metal. This makes it quicker and cheaper than traditional mold-making.
How does Rep Mold work?
The process starts with a 3D design made in CAD. A master model is created using 3D printing or CNC machining. Then, liquid resin is poured around the master to form a mold. Once it hardens, the mold can be used to make parts.
How long does it take to make a Rep Mold?
A Rep Mold can be ready in just a few days. Traditional steel molds take weeks or even months to finish. This speed helps companies test and launch products faster.
What materials are used in Rep Mold?
Most Rep Mold systems use epoxy resins, polyurethane, or silicone. These materials are strong, lightweight, and easy to shape.
How many parts can a Rep Mold make?
It depends on the material and use.
-
A simple mold can make 50 to 5000 parts before wearing out.
-
For longer use, stronger materials or inserts can be added.
Conclusion
Rep Mold is changing how molds are made. It offers a smart, fast, and sustainable way to build tooling without the cost and delay of traditional methods, it does not completely replace metal molds but fills a vital gap between prototype and full production. For startups, small manufacturers, and R&D teams, it offers a chance to innovate faster and cheaper, with continued advances in digital design, smart materials, and automation, Rep Mold will play a major role in the future of modern manufacturing.
